DuanYun

SlideRule · product rehearsal engine
Clarify ideas, ship a runnable product.
_{把想法问清楚，把产品跑起来}

_{TRAE Skill Challenge / Community Showcase Project · product name SlideRule · sliderule.ai · hosted at xiaojilele-glitch/WhyBuddy (the repo keeps the project's original name)}

_{🏆 Winner of the Pioneer Skill Award (先锋技能奖) at the TRAE「一切皆可 Skill · SOLO 技能创作赛」— judged "outstanding in practicality and completeness, with strong promotion value". Entry: From one sentence to executable specs · official announcement}

🧭 North Star: "An AI claiming something is done does not count. Only artifacts that pass deterministic gates count."
The single product main line is SlideRule — intent → evidence-gated application rehearsal. /autopilot is the archived v4 demo. See NORTH_STAR.md.

English · 简体中文

Why the name

A slide rule is an engineer’s analog calculator: scales, a cursor, and alignment before you trust a number.

SlideRule is the same idea for product decisions — not a magic “one-click app factory,” but a rehearsal instrument:

• every step is visible
• every artifact must pass deterministic gates
• only then does a runnable application appear

If AI says “done,” that still does not count. The gate has to pass.

⚡ 30 Second Overview

You enter one sentence. SlideRule rehearses a complete product plan — then lets you run it.

Five-system model · Evidence-gated artifacts · Publish closure · Browser live runtime

Fully visible · Fully exportable · Fully backed by an evidence trail

What it is / is not

Closest mental models people use: “v0/Lovable for the generation surface, Power Platform–like business structure, Manus-like long deliberation — ending in a gated app model, not a git repo.”

🎮 Try It Now (Zero Install)

The static demo runs entirely in your browser — no backend, no key, nothing to install:

• Workbench (start here) → https://xiaojilele-glitch.github.io/WhyBuddy/agent-loop/workbench
• Rehearsal surface → https://xiaojilele-glitch.github.io/WhyBuddy/agent-loop/sliderule

What you can do there:

• Watch a full rehearsal — the main demo card pre-fills a real project intent (community pet-clinic booking & triage); press send and watch the engine reason through six skills to a 6/6 publish closure. Playback is captured from a real end-to-end LLM run, not hand-written.
• Open finished examples — gallery cards (second-hand instrument consignment · script-murder venue scheduling) open as fully closed rehearsals: read the report, run the generated app, switch roles, drive approvals.
• BYOK — bring an OpenAI-compatible key (stays in your browser) to run live rehearsals on new topics.

Product Screens

A consolidated 16-screen photo wall from SlideRule example rehearsals.

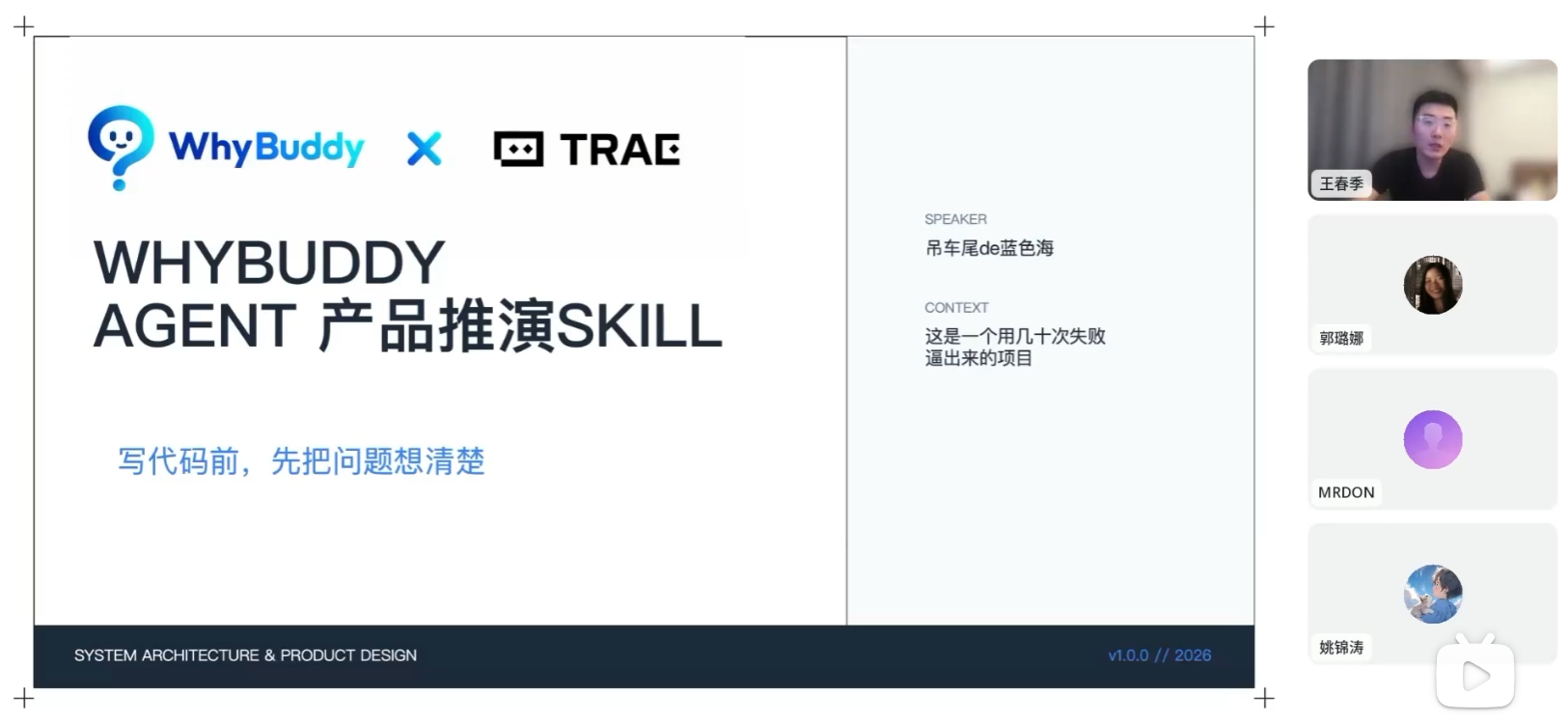

Watch the Full Rehearsal Demo

TRAE SOLO-based product rehearsal automation: from a one-sentence idea to executable specs.

Click the video cover above to open the Bilibili demo.

⚙️ The V5 Rehearsal Engine

One sentence in → multi-loop reasoning over a capability pool (evidence search, risk analysis, counter-arguments, synthesis, reporting…) → a five-system model (data model · RBAC · workflow · pages · AIGC) → ships only when publish closure holds 6/6 evidence.

An AI claiming something is done does not count. Only artifacts that pass deterministic gates count.

flowchart LR
  U["一句话意图<br/>One-sentence intent"] --> ORCH["Orchestrator<br/>rules + Agentic Pick"]
  ORCH --> PAR["轮内并行批<br/>parallel caps per loop<br/>(synthesis/report barriered)"]
  PAR --> GATE{"证据信任门<br/>structure gates · G-GROUND"}
  GATE -->|gated_pass| STATE[("产物库 STATE<br/>trustLevel · stale tracking")]
  GATE -->|fail| FEED["错误回喂重试<br/>error-fed retry"]
  FEED --> PAR
  STATE --> ECTX["证据上下文管道<br/>evidence context pipeline<br/>(only gated artifacts injected)"]
  ECTX --> PAR
  STATE --> CLOSE{"发布闭环<br/>publish closure 6/6"}
  CLOSE -->|closed| APP["可运行应用<br/>Browser Live Runtime"]
  CLOSE -->|blocked| AWAIT["AWAIT 停泊<br/>clarify → re-enter"]
  AWAIT --> ORCH

What makes it different from “an LLM with a long prompt”:

Deep dives: [V5.7 architecture (Chinese)](https://github.com/xiaojilele-glitch/DuanYun/blob/main/<./docs/SlideRule V5.7 架构图.md>) · five-system generation eval · live-runtime blueprint

🕹️ Browser Live Runtime

The rehearsed model is not just diagrams — the browser renders it into an operable system. The five-system JSON is the schema: zero backend, zero database for the runtime preview.

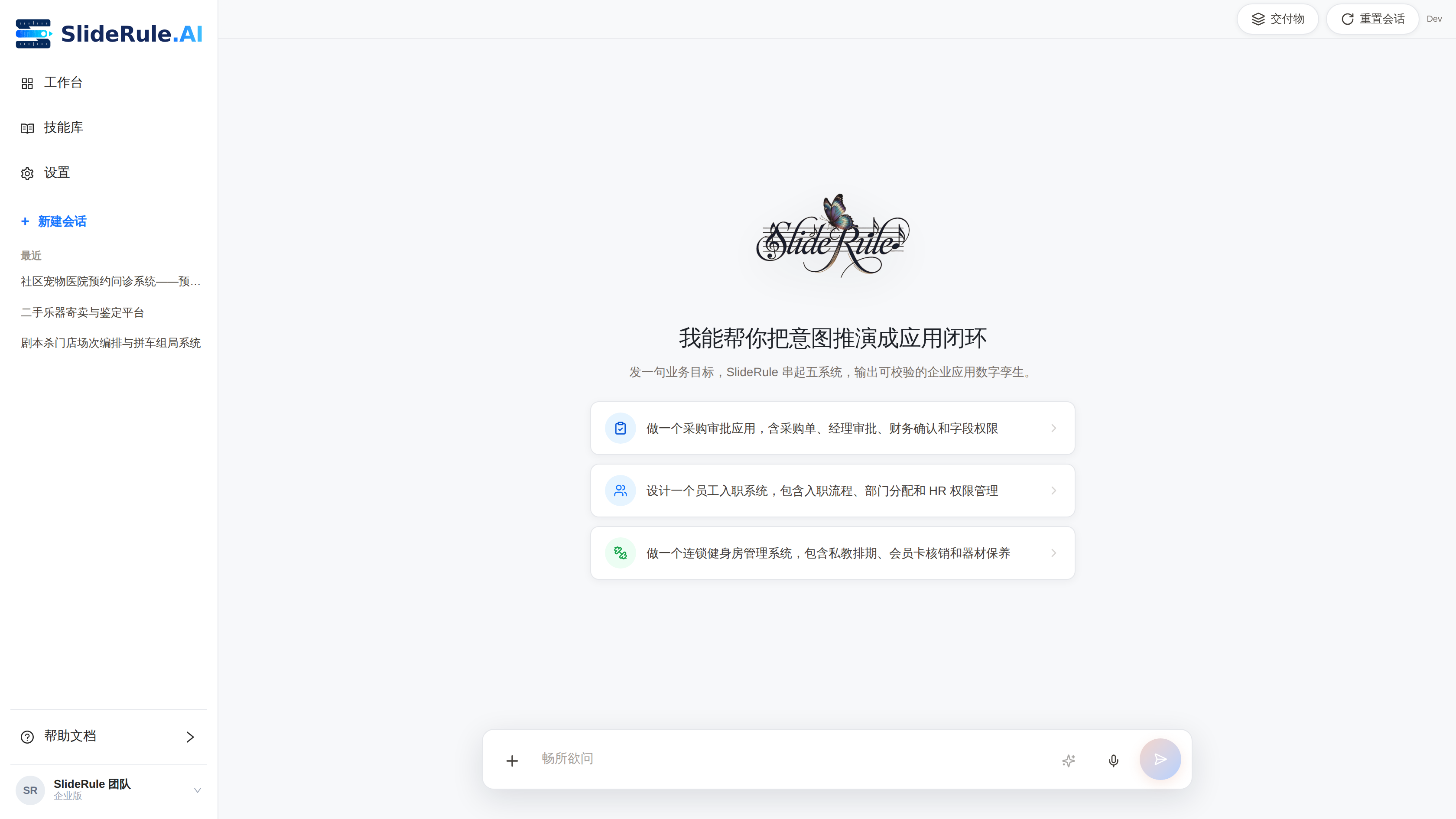

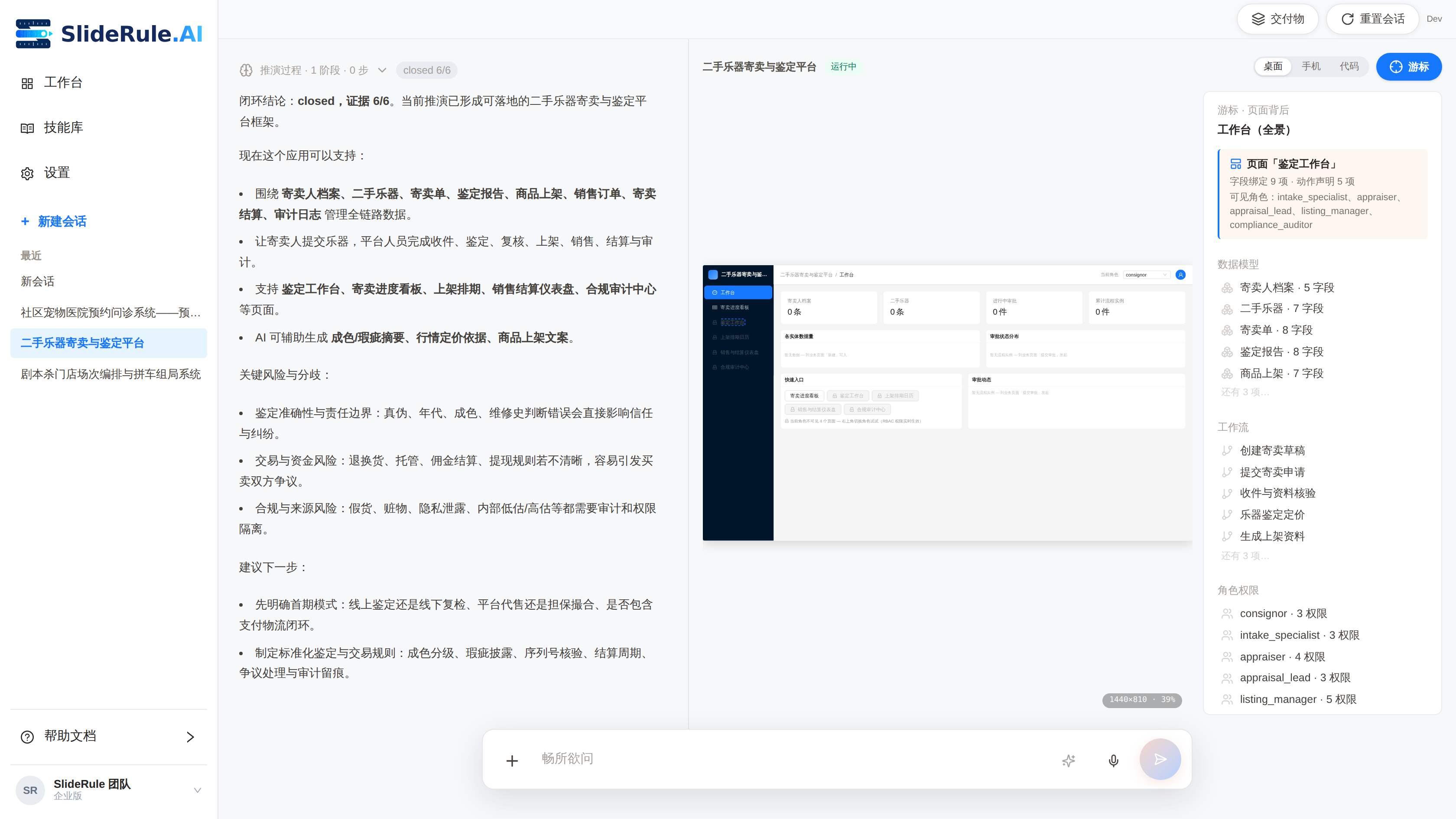

Studio home — brand sidebar, session gallery, guided examples	X-ray cursor (游标) — hover any element and read five-system declarations: fields, roles, workflow nodes

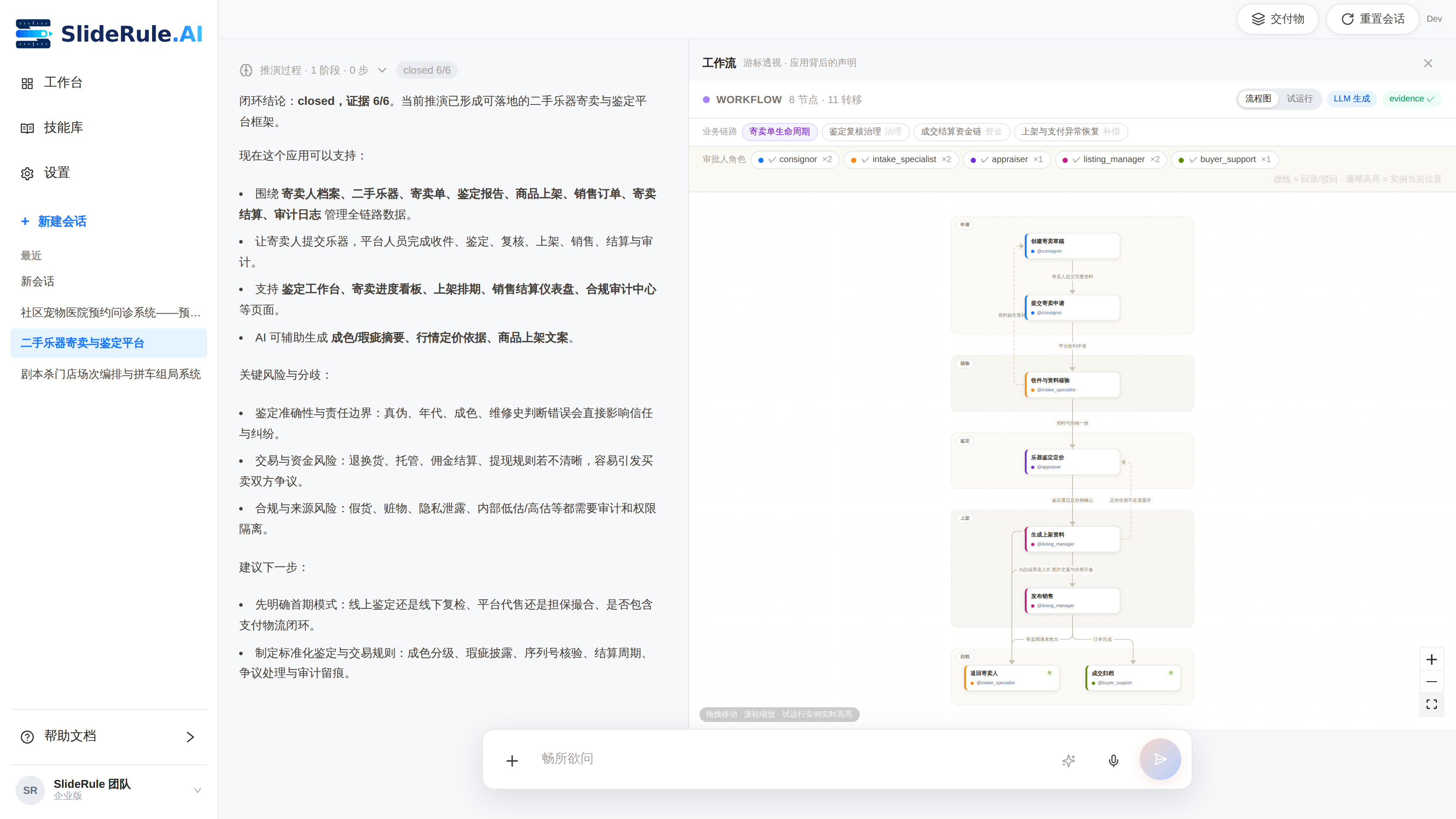

Live workflow — role-colored nodes; running instances light up their current node	Run the app — Pro shell from the model: charts, tables, forms, approvals

After a topic closes (all state in the browser, per-session):

• Run the app — desktop / tablet / phone frames, typed forms, detail drawers, approval submissions
• Switch roles — RBAC locks menus and buttons live; role preview stays in sync both ways
• Drive approvals — start / approve / reject / branch; the workflow diagram is a live monitor
• Edit data in place — DataModel table writes the same rows the app reads
• Try AIGC for real — declared AI capabilities run on the same LLM channel; failures surface honestly
• Export with evidence — delivery package includes a rehearsal-runtime snapshot

🚀 Quick Start

Option A — Docker, one command (recommended)

Full stack (frontend + Node server + Python rehearsal engine), no local Node/Python needed — and no database for the main line (JSON file store):

git clone https://github.com/xiaojilele-glitch/WhyBuddy.git && cd WhyBuddy

cp .env.example .env      # fill at least LLM_API_KEY (any OpenAI-compatible provider) + SESSION_SECRET
docker compose up -d --build

# open http://localhost:3000/agent-loop/workbench

mysql is an optional profile, only for legacy accounts (login / email codes / projects): docker compose --profile accounts up -d.

Sessions and artifacts persist in the named volume sliderule-python-data — rebuilds keep your data.

docker compose logs -f app python   # follow logs
docker compose up -d --build        # rebuild after pulling updates
docker compose down                 # stop (keeps data volumes)
docker compose down -v              # stop and wipe data

Option B — Local development

git clone https://github.com/xiaojilele-glitch/WhyBuddy.git && cd WhyBuddy
pnpm install
pnpm run dev:all          # full stack: frontend + server + executor

Requirements: Node.js 22+ · pnpm · (optional) Python 3.11+ for the rehearsal engine · (optional) Docker for executor mode.

Option C — Browser only (no server, no .env)

pnpm run dev:frontend     # open http://localhost:3000

Or use the hosted static demo.

🧩 The sliderule Skill Package

Besides the full app, SlideRule ships a self-contained Skill package for Trae, Claude, or any host that supports Agent Skills. One sentence in → a reviewable spec package out (requirements / design / tasks / traceability matrix / UI previews). Every gate is actually run by scripts — checks_ledger.json records each script, exit code, and output.

unzip skills/sliderule.zip
# drop the resulting sliderule/ folder into your agent host's skills directory
# (Trae: Skills · Claude: skill), then give it a one-sentence idea

Setup and package layout: skills/README.md.

📝 Rehearsal Examples

Every rehearsal is shareable content. The first three are live in the static demo — captured from real end-to-end engine runs.

🏗️ System Architecture

Current engine (V5.7, per-increment commit provenance): [docs/SlideRule V5.7 架构图.md](https://github.com/xiaojilele-glitch/DuanYun/blob/main/<./docs/SlideRule V5.7 架构图.md>)

Historical: [V5.6](https://github.com/xiaojilele-glitch/DuanYun/blob/main/<./docs/SlideRule V5.6 架构图.md>) · [V5.5](https://github.com/xiaojilele-glitch/DuanYun/blob/main/<./docs/SlideRule V5.5 架构图.md>) · [V5.4](https://github.com/xiaojilele-glitch/DuanYun/blob/main/<./docs/SlideRule V5.4 架构图.md>) · [V5.3](https://github.com/xiaojilele-glitch/DuanYun/blob/main/<./docs/SlideRule V5.3 架构图.md>) · [V5.2](https://github.com/xiaojilele-glitch/DuanYun/blob/main/<./docs/SlideRule V5.2 架构图.md>) · v4 Skill closed-loop diagram (architecture behind the award-winning Skill package)

🛠️ Tech Stack

📊 Project Scale

⚔️ How to place SlideRule

These tools solve different jobs. The table is not “we replace them all” — it shows where the rehearsal main line is unique.

For generation UX people often compare v0 / Lovable / Bolt; for long visible deliberation, Manus-class agents; for enterprise app structure, Power Platform / low-code. SlideRule’s bet is the intersection: rehearse the business system under gates, then run the model — not only emit code or a chat bot.

🤝 Contributing

1. Fork & clone → pnpm install
2. pnpm run dev:frontend (UI) or pnpm run dev:all (full stack)
3. Before submitting: pnpm run check && pnpm run test

Branch model: main is production; pre_main is daily integration. Merges go through the release gate — a red gate mechanically blocks the merge:

bash scripts/merge-gated.sh <your-branch> "<message>"            # daily → pre_main
bash scripts/merge-gated.sh pre_main "<release message>" main    # release → main

See CONTRIBUTING.md.

⭐ Star History

Every rehearsal is content that helps others discover what is possible. Star this repository to help more people find it.

📈 Star growth curve →
